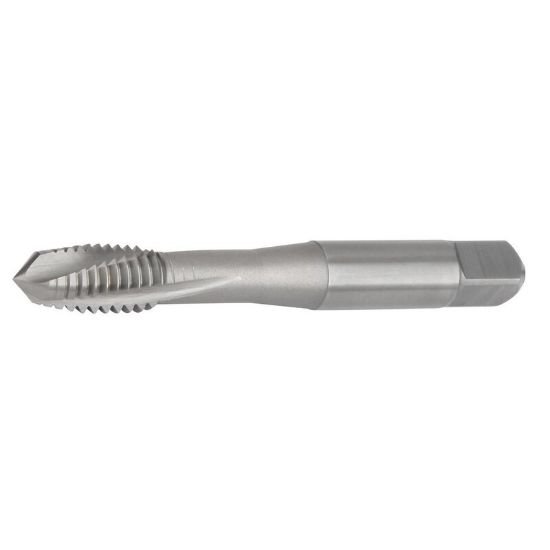

Picture of Widia/Kennametal GT605040 5/16-24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605040 5/16-24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171181
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5562983 5/16"x24.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2360
Tap Chamfer 3.5P-5.0P
