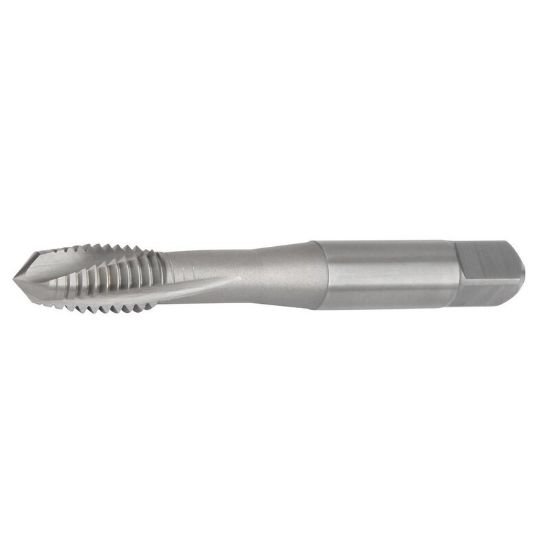

Picture of Widia/Kennametal GT605008 No.4-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT605008 No.4-40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT605008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171157
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5562941 No.4x40.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE-PM TiN + CrC H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiN + CrC
Overall Length 1.8800 47.75MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1080
Tap Chamfer 3.5P-5.0P
