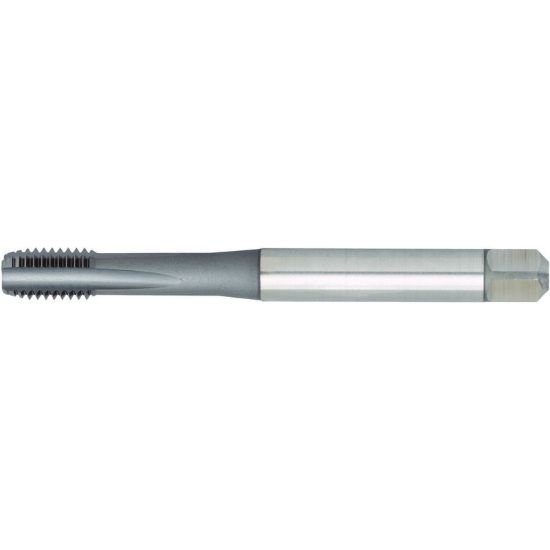

Picture of Widia/Kennametal GT405002 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT405002 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Part Number: WIDGT405002
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.16
SKU: 1169671

Description

WIDIA 4033700 M5x0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7600 70.10MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1930
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
