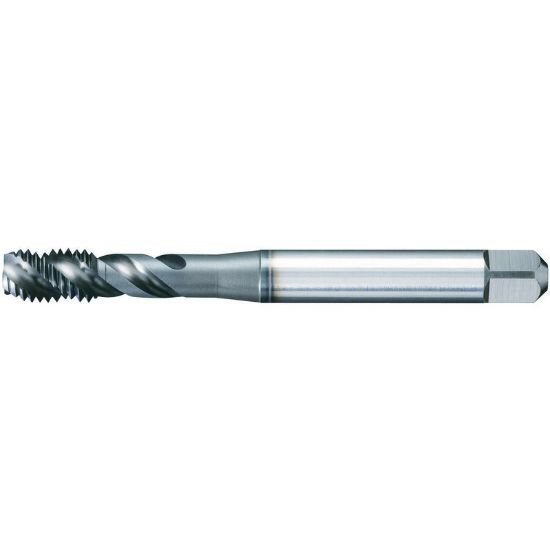

Picture of Widia/Kennametal GT305119 M6-1.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Widia/Kennametal GT305119 M6-1.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Part Number: WIDGT305119
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1169706

Description

WIDIA 4035069 M6x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM Steam Oxide 6H Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.1560 80.16MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1930
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating Steam Oxide
Standards & Identification
Dimension Standard DIN/DIN
