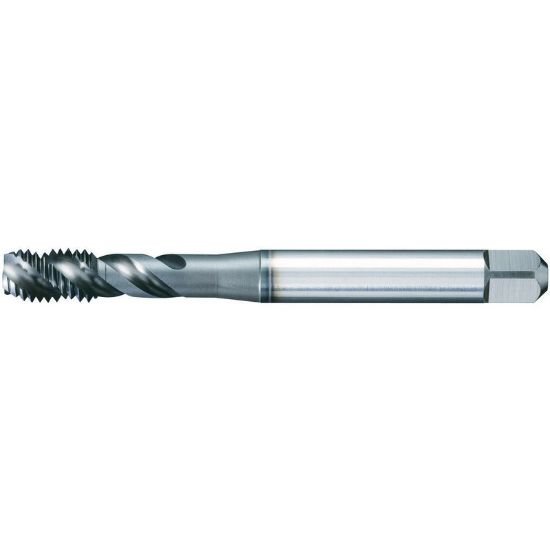

Picture of Widia/Kennametal GT305118 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Widia/Kennametal GT305118 M5-0.80mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal Steam Oxide

Part Number: WIDGT305118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169705
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4035068 M5x0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM Steam Oxide 6H Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Steam Oxide
Overall Length 2.7600 70.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1930
Tap Chamfer 2.0P-3.0P
