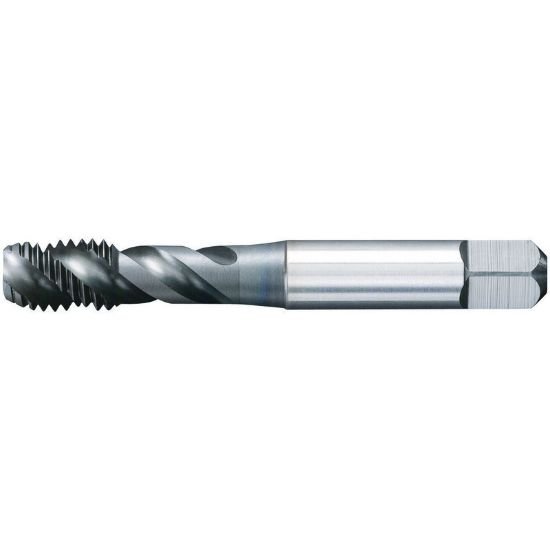

Picture of Widia/Kennametal GT305069 M16-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Widia/Kennametal GT305069 M16-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Part Number: WIDGT305069
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M16 × 2.00MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169524
Vendor: Sussex Tool and Supply
$153.13

Description

WIDIA 3955068 M16x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.8110 96.80MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 5
Thread Pitch 2.00MM
Thread Size M16
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3570
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard ANSI/ANSI
