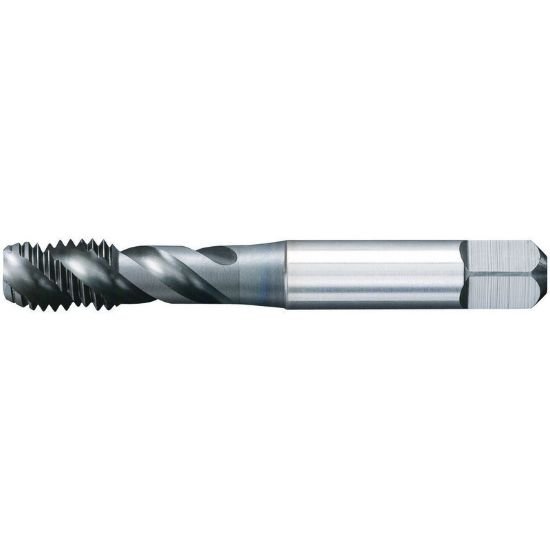

Picture of Widia/Kennametal GT305065 M8-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Widia/Kennametal GT305065 M8-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Part Number: WIDGT305065

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169520
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 3955064 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating CrC + C
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Tap Chamfer 2.0P-3.0P
