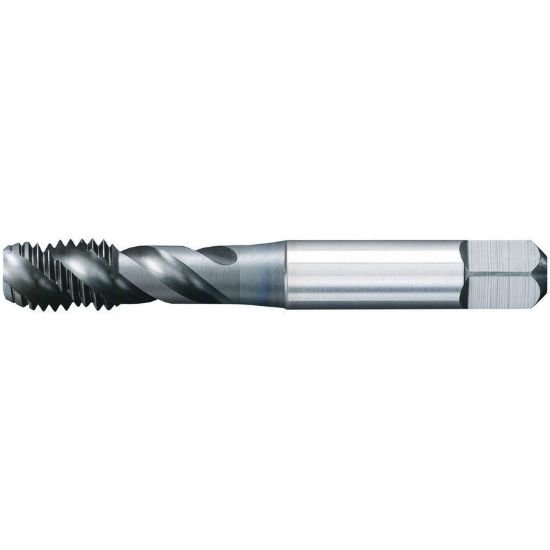

Picture of Widia/Kennametal GT305018 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Widia/Kennametal GT305018 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Part Number: WIDGT305018

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169595
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 3955148 5/8"x11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM CrC + C 3B NC/UNC Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating CrC + C
Overall Length 3.8110 96.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3570
Tap Chamfer 2.0P-3.0P
