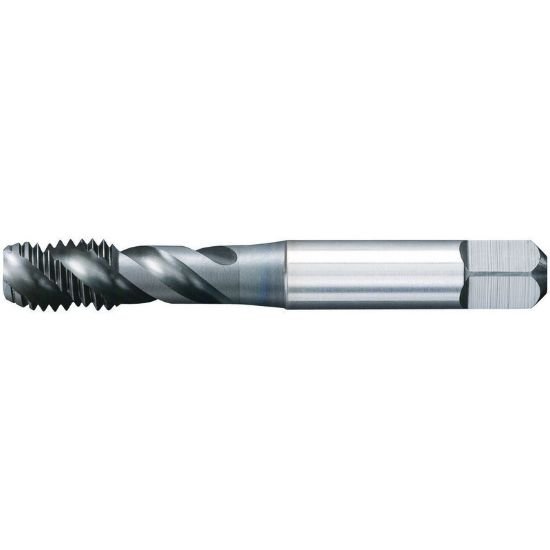

Picture of Widia/Kennametal GT305001 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Widia/Kennametal GT305001 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Part Number: WIDGT305001
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$53.99
SKU: 1169578

Description

WIDIA 3955131 No.2x56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM CrC + C 3B NC/UNC Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1080
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard ANSI/ANSI
