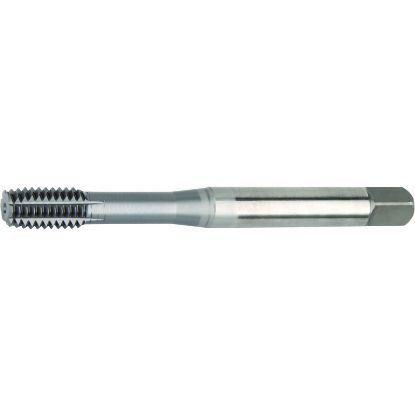

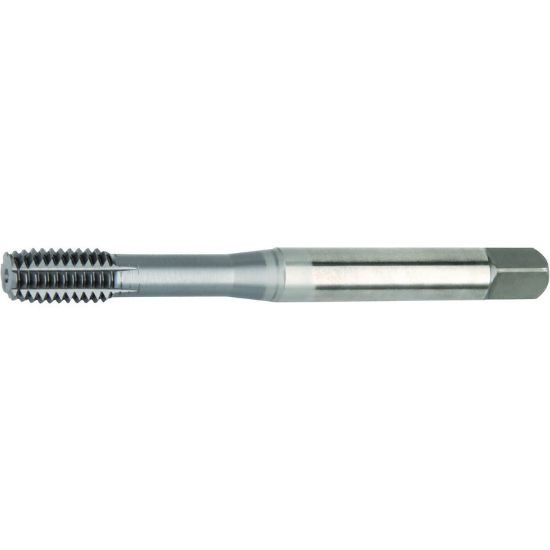

Picture of Widia/Kennametal GT275039 M14-2.00mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal GT275039 M14-2.00mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT275039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171977
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5945200 M14x2.00MM Roll Form Bottoming 1.0P-2.0P HSSE TiCN D12 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 4.3300 109.98MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4290 10.90MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M14
Thread Limit D12
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Tap Square 0.3190
Tap Chamfer 1.0P-2.0P
