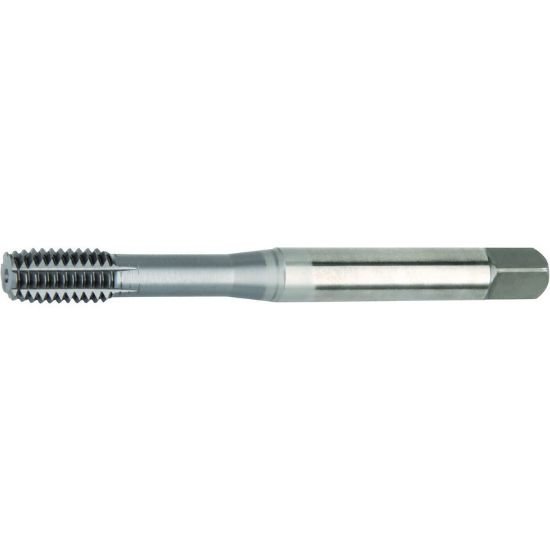

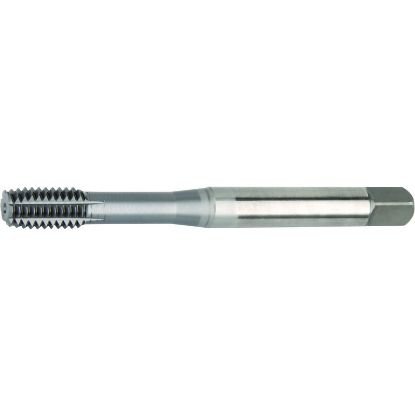

Widia/Kennametal GT275037 M12-1.75mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT275037
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$145.85
SKU: 1171975

Description

WIDIA 5945198 M12x1.75MM Roll Form Bottoming 1.0P-2.0P HSSE TiCN D11 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 4.3300 109.98MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D11
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
