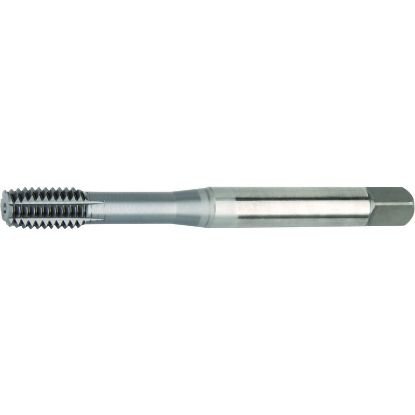

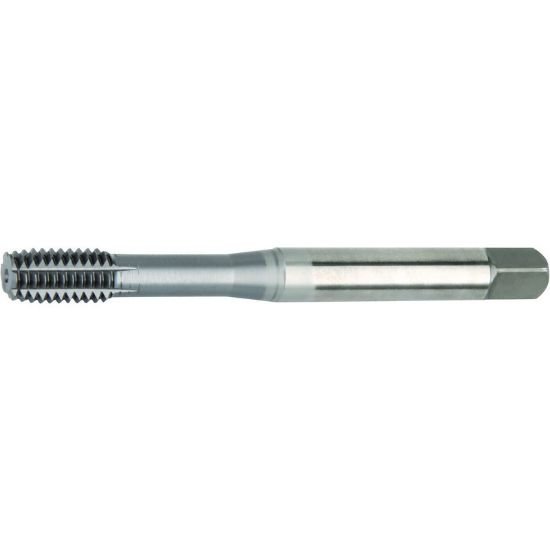

Widia/Kennametal GT275036 M12-1.50mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT275036
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1171974

Description

WIDIA 5945197 M12x1.50MM Roll Form Bottoming 1.0P-2.0P HSSE TiCN D9 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 4.3300 109.98MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.50MM
Thread Size M12
Tap Drill Range 0.4425 11.24MM - 0.4504 11.44MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D9
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
