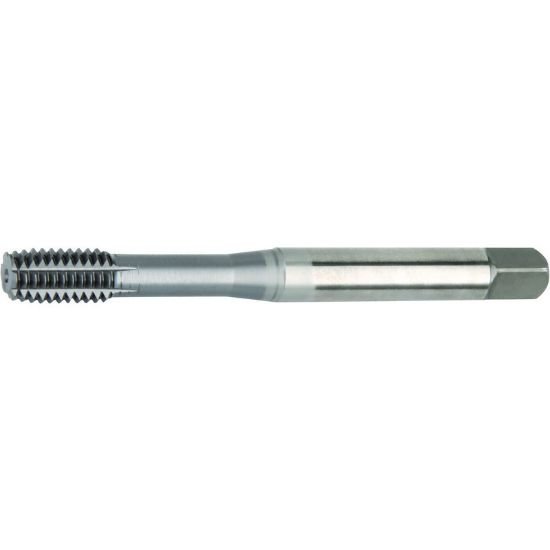

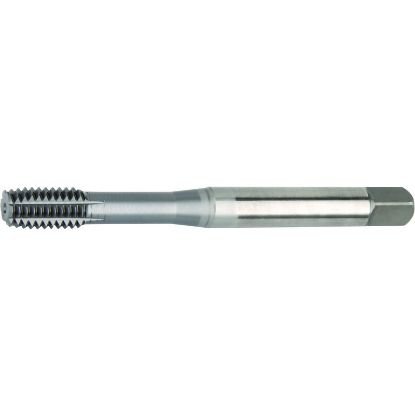

Picture of Widia/Kennametal GT275035 M12-1.25mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal GT275035 M12-1.25mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT275035
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.25MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171973
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 5945196 M12x1.25MM Roll Form Bottoming 1.0P-2.0P HSSE TiCN D9 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 4.3300 109.98MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.25MM
Thread Size M12
Tap Drill Range 0.4472 11.36MM - 0.4539 11.53MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D9
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
