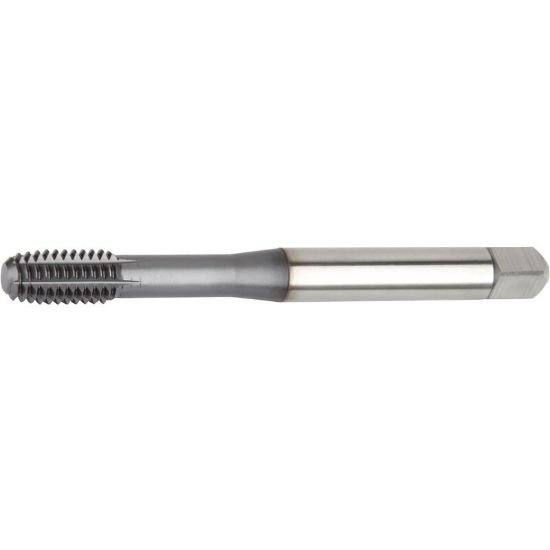

Picture of Widia/Kennametal GT265028 3/8-24.00TPI Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal GT265028 3/8-24.00TPI Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT265028

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171933
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5945117 3/8"x24.00TPI Roll Form Bottoming 1.0P-2.0P HSSE TiCN H5/GH5 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 3.9450 100.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H5/GH5
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.3535 8.98MM - 0.3591 9.12MM
Tap Square 0.2840
Tap Chamfer 1.0P-2.0P
