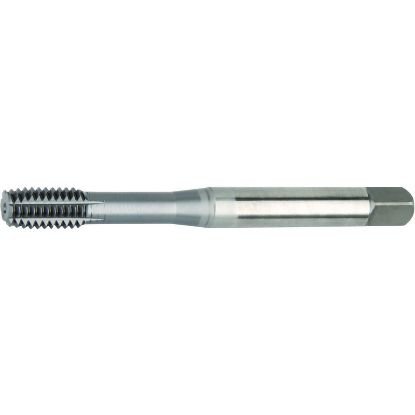

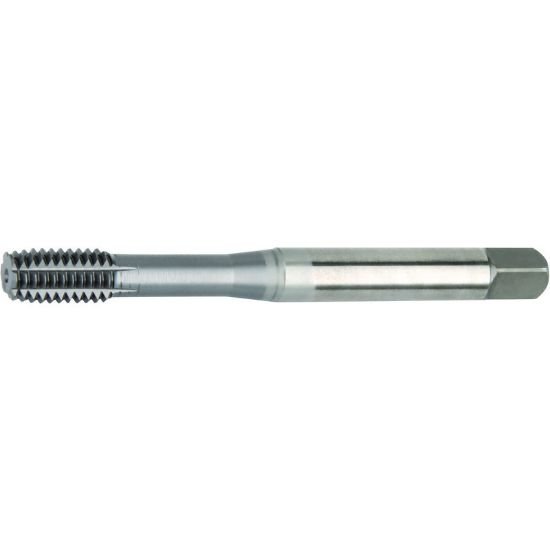

Picture of Widia/Kennametal GT255034 M10-1.50mm Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Widia/Kennametal GT255034 M10-1.50mm Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: WIDGT255034

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171906
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5945072 M10x1.50MM Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN D10 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 3.9450 100.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M10
Thread Limit D10
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2840
Tap Chamfer 2.5P-3.0P
