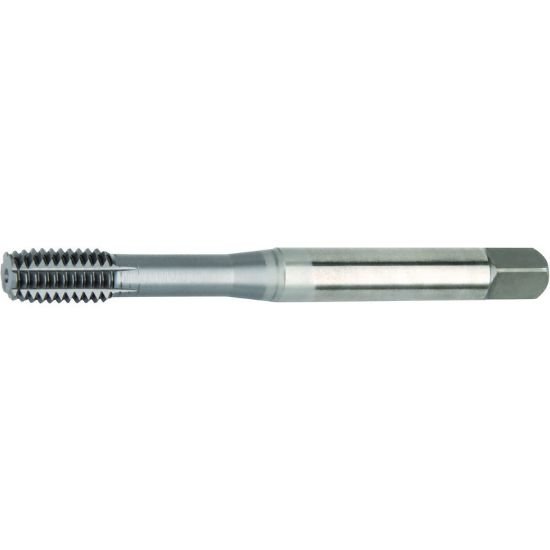

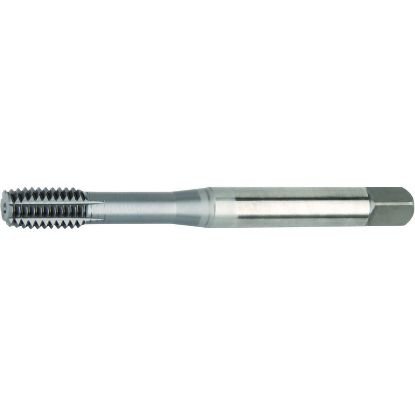

Picture of Widia/Kennametal GT255019 1/2-20.00TPI Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Widia/Kennametal GT255019 1/2-20.00TPI Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: WIDGT255019
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$168.48
SKU: 1171896

Description

WIDIA 5945047 1/2"x20.00TPI Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN H5/GH5 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 4.3300 109.98MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
