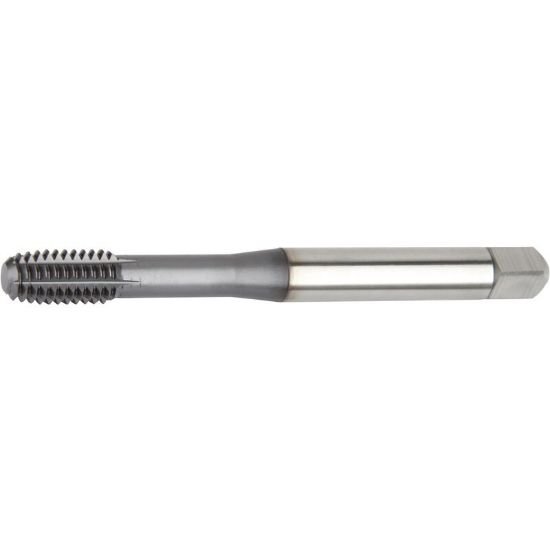

Picture of Widia/Kennametal GT245037 M3-0.50mm Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Widia/Kennametal GT245037 M3-0.50mm Roll Form Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: WIDGT245037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171869
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.1410 3.58MM
Thread Limit D5
Cutter Type Taping
Tap Square 0.1080
Length Type STANDARD
Performance Rating High Performance
Tap Style Roll Form
Overall Length 2.2050 56.01MM
Machine Side (Toolpost) TAP0.110x0.141
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating TICN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M3
Thread Pitch 0.50MM
Tap Chamfer 2.5P-3.0P
