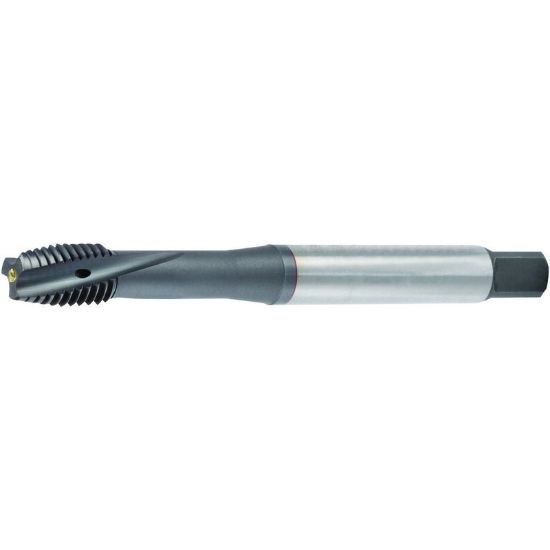

Picture of Widia/Kennametal GT215001 M5-0.80mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Widia/Kennametal GT215001 M5-0.80mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Part Number: WIDGT215001
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M5 × 0.80MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169498
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 3955038 M5x0.80MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard DIN/DIN
