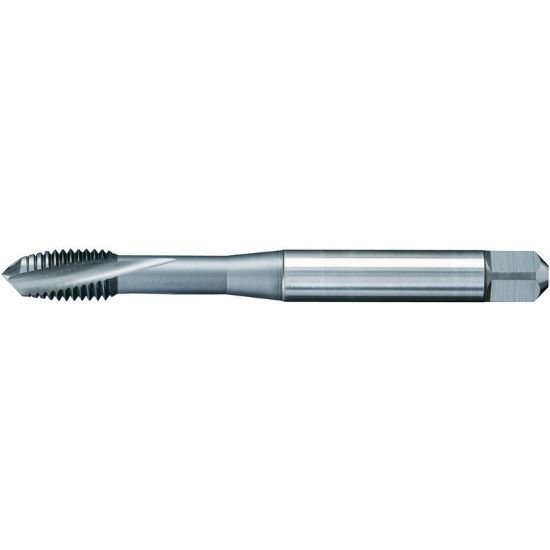

Picture of Widia/Kennametal GT205086 M20-2.50mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Widia/Kennametal GT205086 M20-2.50mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Part Number: WIDGT205086
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M20 × 2.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169531
Vendor: Sussex Tool and Supply
$209.88

Description

WIDIA 3955076 M20x2.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Thread Pitch 2.50MM
Thread Size M20
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4720
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard DIN/DIN
