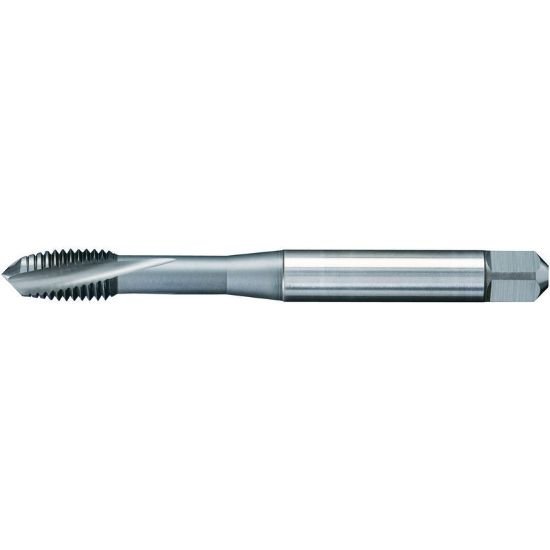

Picture of Widia/Kennametal GT205077 M3-0.50mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Widia/Kennametal GT205077 M3-0.50mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Part Number: WIDGT205077

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169507
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 3955047 M3x0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating CrC + C
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1370 3.48MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Square 0.1060
Tap Chamfer 3.0P-5.5P
