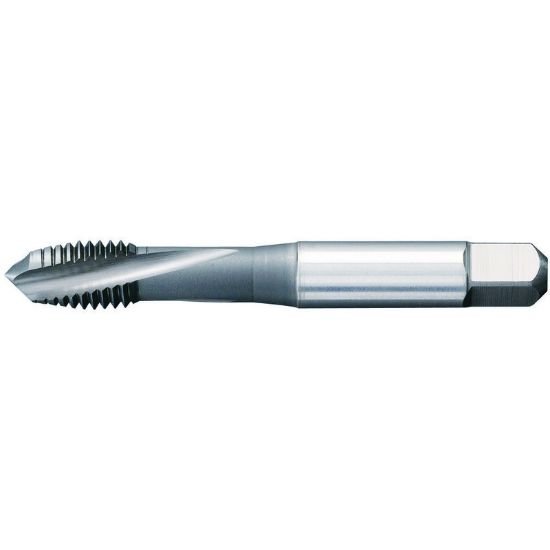

Picture of Widia/Kennametal GT205006 No.6-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Widia/Kennametal GT205006 No.6-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal CrC + C

Part Number: WIDGT205006
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
No.6 × 32.00TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169634
Vendor: Sussex Tool and Supply
$48.96

Description

WIDIA 3955278 No.6x32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM CrC + C 2B NC/UNC Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 32.00TPI
Thread Size No.6
Tap Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Square 0.1080
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard ANSI/ANSI
