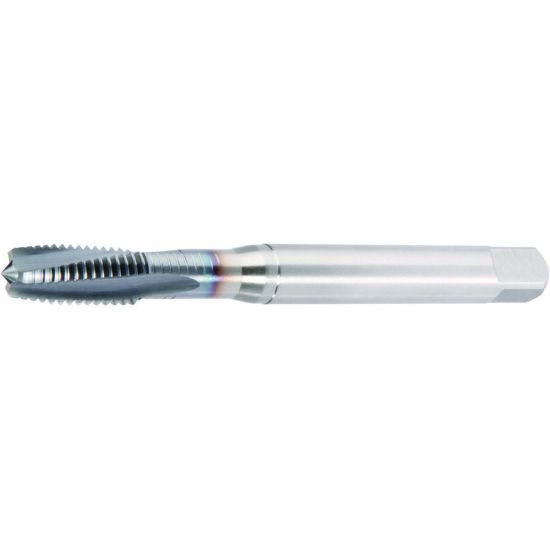

Picture of Widia/Kennametal GT105005 M8-1.25mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Widia/Kennametal GT105005 M8-1.25mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Part Number: WIDGT105005
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M8 × 1.25MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169903
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 4160104 M8x1.25MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 3.5430 89.99MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
