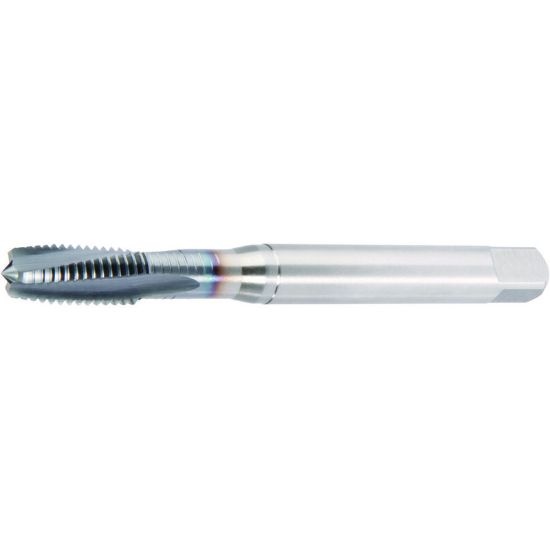

Picture of Widia/Kennametal GT105002 M4-0.70mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Widia/Kennametal GT105002 M4-0.70mm Cut Spiral Flute Plug 3.0P-5.5P HSSE-Powder Metal TiCN

Part Number: WIDGT105002

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169900
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4160101 M4x0.70MM Cut Spiral Flute Plug 3.0P-5.5P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 2.4850 63.12MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1772 4.50MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1340
Tap Chamfer 3.0P-5.5P
