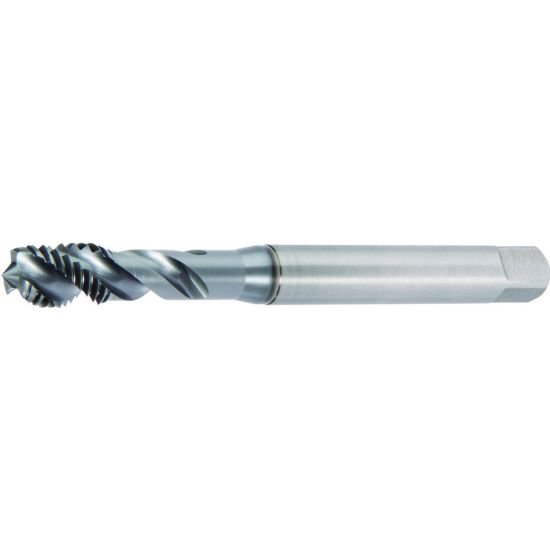

Picture of Widia/Kennametal GT045016 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Widia/Kennametal GT045016 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Part Number: WIDGT045016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169843
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4158776 M12x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiAIN + TiN 6H Metric Steel TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiAIN + TiN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Square 0.2760
Tap Chamfer 2.0P-3.0P
