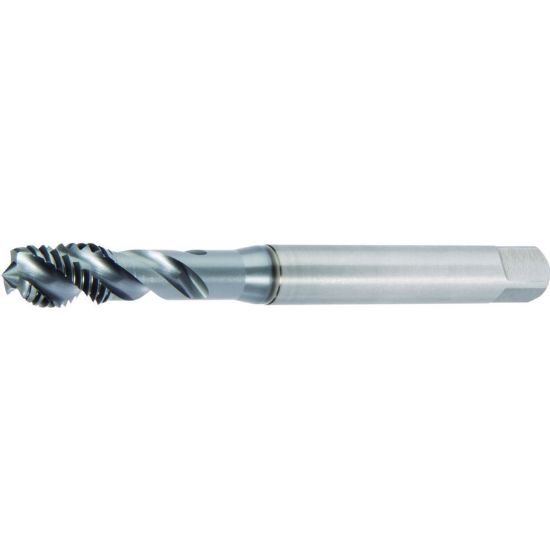

Picture of Widia/Kennametal GT045009 M16-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Widia/Kennametal GT045009 M16-2.00mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Part Number: WIDGT045009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169836
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4158769 M16x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiAIN + TiN 6H Metric Steel TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TiAIN + TiN
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M16
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3540
Tap Chamfer 2.0P-3.0P
