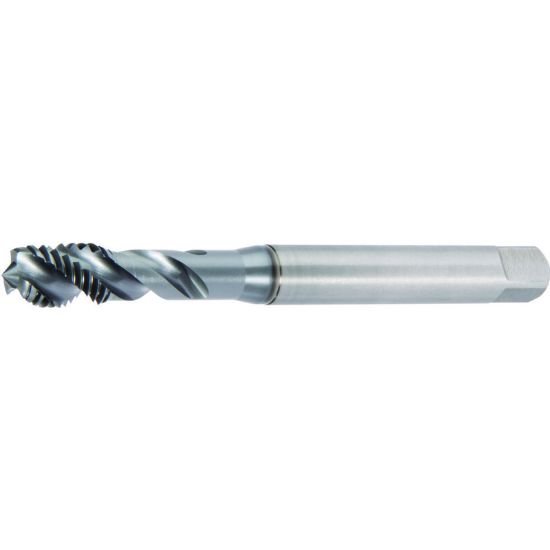

Picture of Widia/Kennametal GT045005 M8-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Widia/Kennametal GT045005 M8-1.25mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiAIn + TiN

Part Number: WIDGT045005
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M8 × 1.25MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169833
Vendor: Sussex Tool and Supply
$90.88

Description

WIDIA 4158765 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiAIN + TiN 6H Metric Steel TiAlN has a coating thickness of 1 to 3 microns and is typically violet-grey in colour. Titanium nitride (TiN) has an amber-gold putting the tin on top layer allows for smother surface
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.5430 89.99MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiAIN + TiN
Standards & Identification
Dimension Standard DIN/DIN
