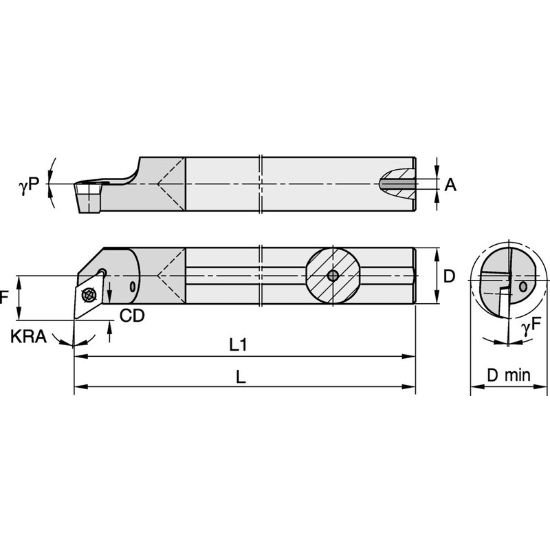

Picture of Widia/Kennametal GCPI625105R Carbide 45.0° Insert Boring Bar 0.625

Widia/Kennametal GCPI625105R Carbide 45.0° Insert Boring Bar 0.625

Part Number: WID2827800 ISO: GCPI625105R ANSI:GCPI625105R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076073
Vendor: Sussex Tool and Supply
$572.40
WIDIA 2827800 45.0 ° Boring Bar Dia0.6250 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.6250 15.88MM
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style GC
Insert Shape/Cutter Pocket Shape 45.0°
Insert Type Positive
Insert Size Ic 06 "1.5"
Hand Right Hand
Inter/Extern Internal
Min Bore 0.7650
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
