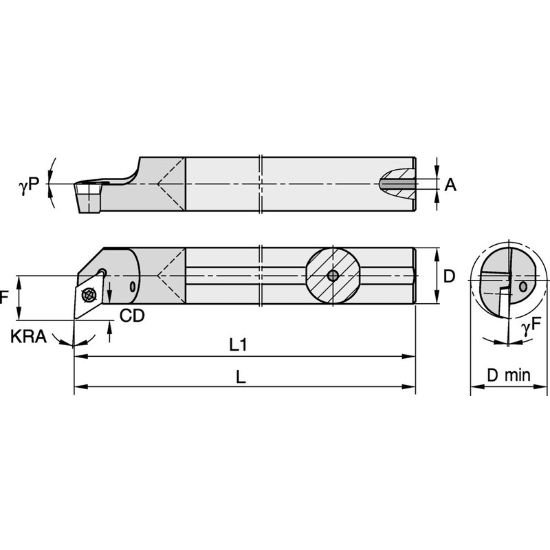

Picture of Widia/Kennametal GCPI50080R Carbide 45.0° Insert Boring Bar 0.500

Widia/Kennametal GCPI50080R Carbide 45.0° Insert Boring Bar 0.500

Part Number: WID2827767 ISO: GCPI50080R ANSI:GCPI50080R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076071
Vendor: Sussex Tool and Supply
$545.09

Description

WIDIA 2827767 45.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style GC
Insert Shape/Cutter Pocket Shape 45.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 06 "1.5"
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
Performance & Capacity
Min Bore 0.6400
Materials & Finish
Tool Material Carbide
