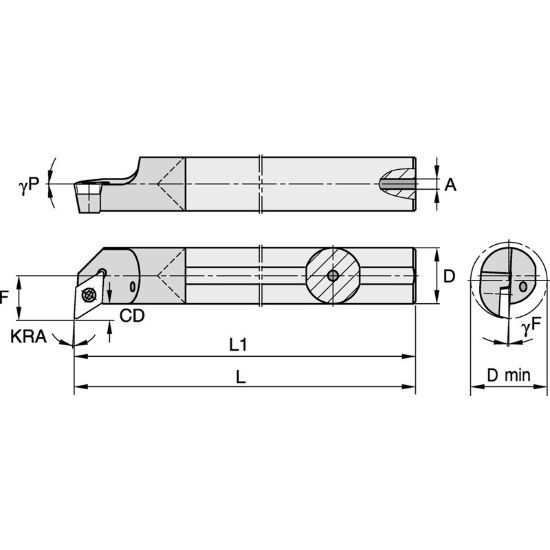

Picture of Widia/Kennametal GCPI37565R Carbide 45.0° Insert Boring Bar 0.375

Widia/Kennametal GCPI37565R Carbide 45.0° Insert Boring Bar 0.375

Part Number: WID2827825 ISO: GCPI37565R ANSI:GCPI37565R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076075
Vendor: Sussex Tool and Supply
$388.07
WIDIA 2827825 45.0 ° Boring Bar Dia0.3750 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.3750 9.53MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style GC
Insert Shape/Cutter Pocket Shape 45.0°
Insert Type Positive
Insert Size Ic 06 "1.5"
Hand Right Hand
Inter/Extern Internal
Min Bore 0.5150
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
