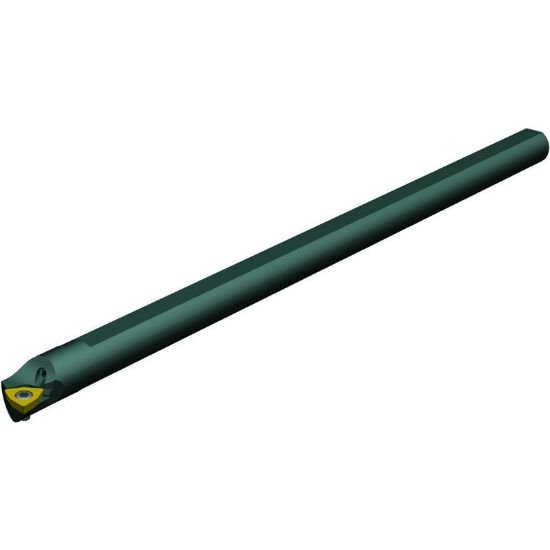

Picture of Widia/Kennametal GCBIW31263L Carbide Trigon Insert Boring Bar 0.312

Widia/Kennametal GCBIW31263L Carbide Trigon Insert Boring Bar 0.312

Part Number: WID2827727 ISO: GCBIW31263L ANSI:GCBIW31263L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076067
Vendor: Sussex Tool and Supply
$343.79

Description

WIDIA 2827727 Trigon Boring Bar Dia0.3125 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 1
Insert Size Ic 03 "1.5"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle
Performance & Capacity
Min Bore 0.3470
Materials & Finish
Tool Material Carbide
