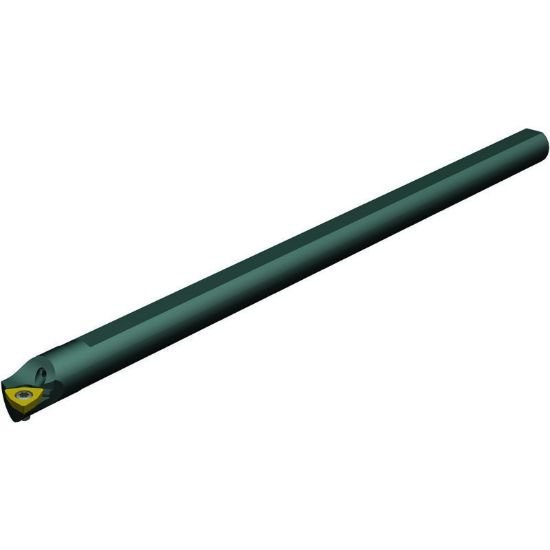

Picture of Widia/Kennametal GCBIW25063R Carbide Trigon Insert Boring Bar 0.250

Widia/Kennametal GCBIW25063R Carbide Trigon Insert Boring Bar 0.250

Part Number: WID2827743 ISO: GCBIW25063R ANSI:GCBIW25063R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076069
Vendor: Sussex Tool and Supply
$343.79

Description

WIDIA 2827743 Trigon Boring Bar Dia0.2500 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 1
Insert Size Ic 03 "1.5"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle
Performance & Capacity
Min Bore 0.2850
Materials & Finish
Tool Material Carbide
