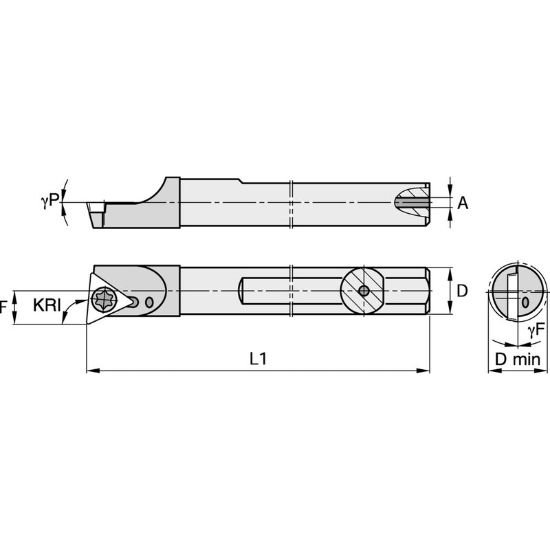

Picture of Widia/Kennametal FCBM61520R Carbide Triangle Insert Boring Bar 0.236

Widia/Kennametal FCBM61520R Carbide Triangle Insert Boring Bar 0.236

Part Number: WID3896031 ISO: FCBM61520R ANSI:FCBM61520R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076152
Vendor: Sussex Tool and Supply
$343.79

Description

WIDIA 3896031 Triangle Boring Bar Dia0.2362 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 1
Insert Size Ic 07 "13"
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
Performance & Capacity
Min Bore 0.2780
Materials & Finish
Tool Material Carbide
