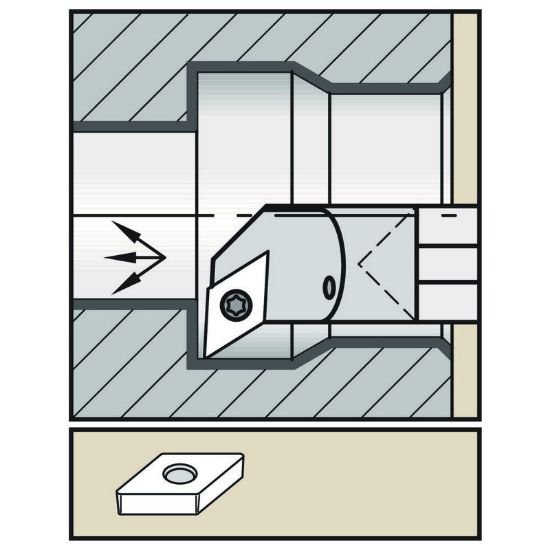

Picture of Widia/Kennametal E25TSDUCL11 55.0° Insert Boring Bar 0.984

Widia/Kennametal E25TSDUCL11 55.0° Insert Boring Bar 0.984

Part Number: WID2023629 ISO: E25T-SDUCL11 ANSI:E25TSDUCL11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076187
Vendor: Sussex Tool and Supply
$1,458.80

Description

WIDIA 2023629 55.0 ° Boring Bar Dia0.9843 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 1.2598
Materials & Finish
Tool Material Carbide
