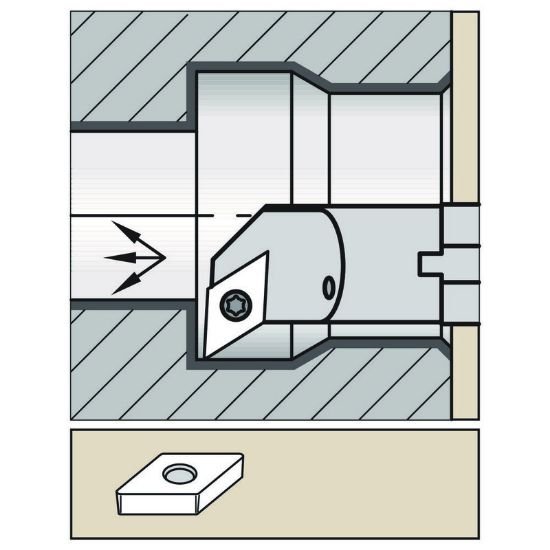

Picture of Widia/Kennametal E20S-SDQCR11 55.0° Insert Boring Bar 0.787

Widia/Kennametal E20S-SDQCR11 55.0° Insert Boring Bar 0.787

Part Number: WID2023623 ISO: E20S-SDQCR11 ANSI:E20S-SDQCR11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076183
Vendor: Sussex Tool and Supply
$820.61

Description

WIDIA 2023623 55.0 ° Boring Bar Dia0.7874 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 9.8425 250.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 1
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 15.5° Clearance Angle
Clearance Angle 15.5°
Performance & Capacity
Min Bore 0.9843
Materials & Finish
Tool Material Carbide
