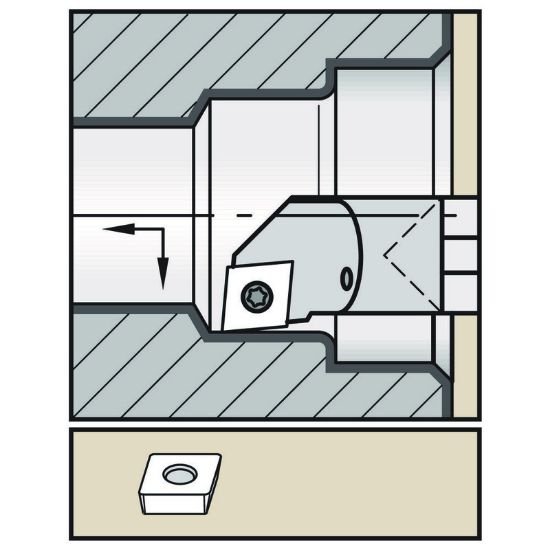

Picture of Widia/Kennametal E20S-SCLCL09 80.0° Insert Boring Bar 0.787

Widia/Kennametal E20S-SCLCL09 80.0° Insert Boring Bar 0.787

Part Number: WID2031026 ISO: E20S-SCLCL09 ANSI:E20S-SCLCL09
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076201
Vendor: Sussex Tool and Supply
$820.61

Description

WIDIA 2031026 80.0 ° Boring Bar Dia0.7874 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 9.8425 250.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 1
Insert Size Ic 09 "32"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.9843
Materials & Finish
Tool Material Carbide
