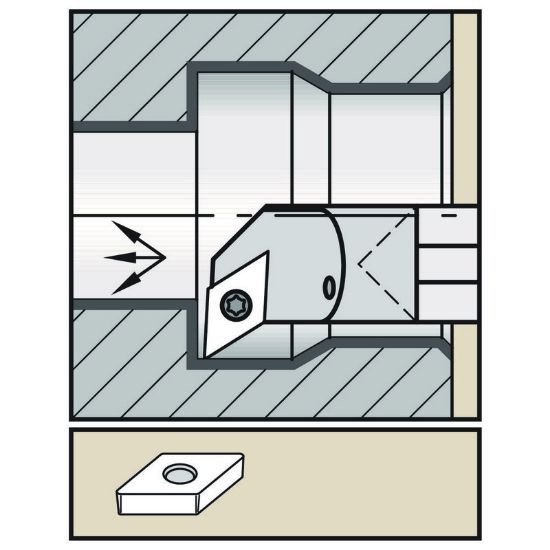

Picture of Widia/Kennametal E16RSDUCL07 55.0° Insert Boring Bar 0.629

Widia/Kennametal E16RSDUCL07 55.0° Insert Boring Bar 0.629

Part Number: WID2023617 ISO: E16R-SDUCL07 ANSI:E16RSDUCL07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076179
Vendor: Sussex Tool and Supply
$634.32

Description

WIDIA 2023617 55.0 ° Boring Bar Dia0.6299 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 0.7874
Materials & Finish
Tool Material Carbide
