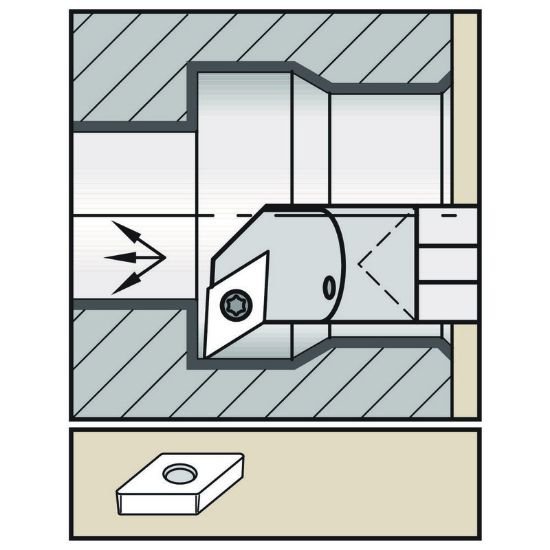

Picture of Widia/Kennametal E12Q-SDUCR07 55.0° Insert Boring Bar 0.472

Widia/Kennametal E12Q-SDUCR07 55.0° Insert Boring Bar 0.472

Part Number: WID2023611 ISO: E12Q-SDUCR07 ANSI:E12Q-SDUCR07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076176
Vendor: Sussex Tool and Supply
$471.57

Description

WIDIA 2023611 55.0 ° Boring Bar Dia0.4724 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 0.6299
Materials & Finish
Tool Material Carbide
