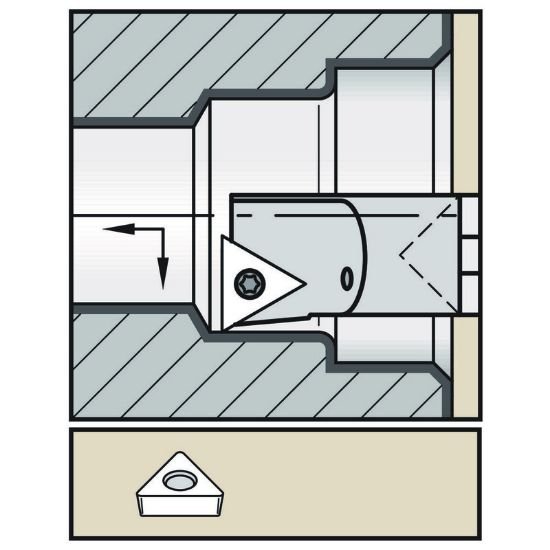

Picture of Widia/Kennametal E08R-STFPR2 Triangle Insert Boring Bar 0.500

Widia/Kennametal E08R-STFPR2 Triangle Insert Boring Bar 0.500

Part Number: WID5093698 ISO: E08R-STFPR2 ANSI:E08R-STFPR2
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076358
Vendor: Sussex Tool and Supply
$551.73

Description

WIDIA 5093698 Triangle Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type Through
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 91°
Lead Angle & Clearance Angle Combined 91° Lead Angle
Performance & Capacity
Min Bore 0.6000
Materials & Finish
Tool Material Carbide
