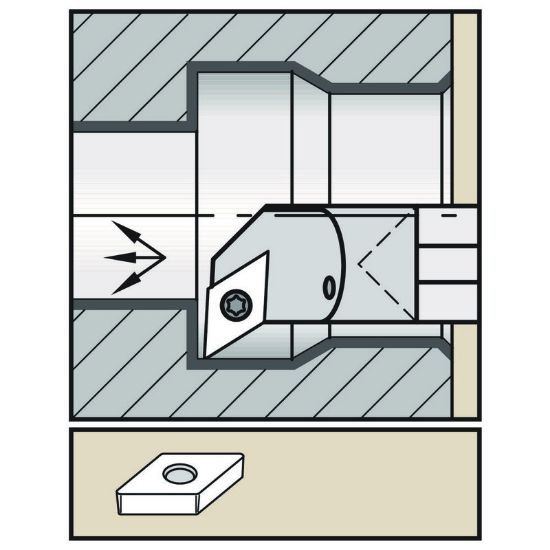

Picture of Widia/Kennametal E08R-SDUPR2 55.0° Insert Boring Bar 0.500

Widia/Kennametal E08R-SDUPR2 55.0° Insert Boring Bar 0.500

Part Number: WID5093424 ISO: E08RSDUPR2 ANSI:E08R-SDUPR2
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076357
Vendor: Sussex Tool and Supply
$582.53

Description

WIDIA 5093424 55.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DP
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type Through
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 2151
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 0.7300
Materials & Finish
Tool Material Carbide
