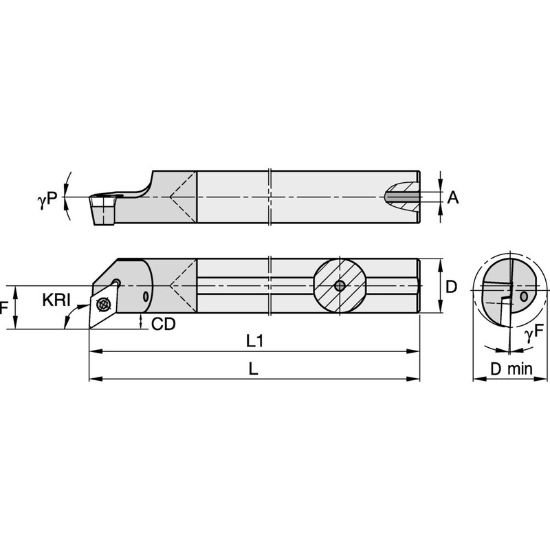

Picture of Widia/Kennametal CCPM81525L Carbide 45.0° Insert Boring Bar 0.315

Widia/Kennametal CCPM81525L Carbide 45.0° Insert Boring Bar 0.315

Part Number: WID3896022 ISO: CCPM81525L ANSI:CCPM81525L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076150
Vendor: Sussex Tool and Supply
$385.11

Description

WIDIA 3896022 80.0 ° Boring Bar Dia0.3150 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style GP
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 1
Insert Size Ic 05 "1.2"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.4230
Materials & Finish
Tool Material Carbide
