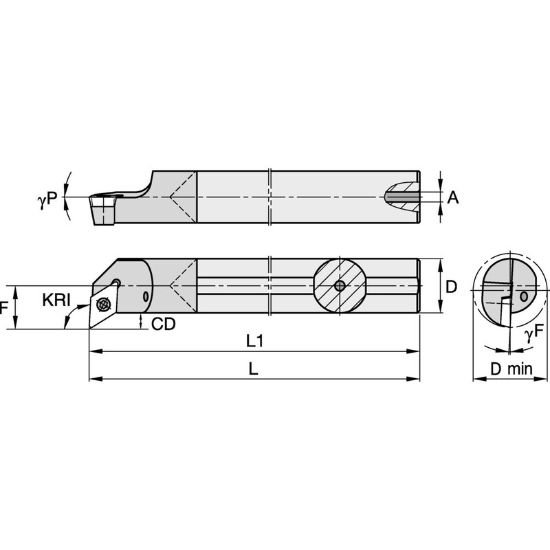

Picture of Widia/Kennametal CCPM61525R Carbide 45.0° Insert Boring Bar 0.236

Widia/Kennametal CCPM61525R Carbide 45.0° Insert Boring Bar 0.236

Part Number: WID2831020 ISO: CCPM61525R ANSI:CCPM61525R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076102
Vendor: Sussex Tool and Supply
$354.00
WIDIA 2831020 45.0 ° Boring Bar Dia0.2362 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.2362 6.00MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style GP
Insert Shape/Cutter Pocket Shape 45.0°
Insert Type Positive
Insert Size Ic 05 "1.2"
Hand Right Hand
Inter/Extern Internal
Min Bore 0.3600
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
