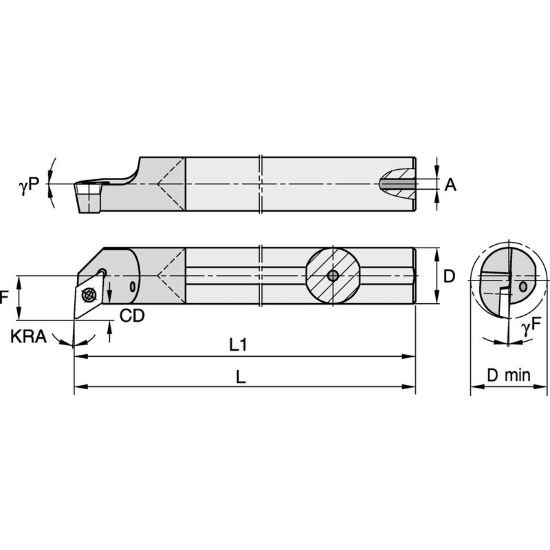

Picture of Widia/Kennametal CCPI25060R Carbide 45.0° Insert Boring Bar 0.250

Widia/Kennametal CCPI25060R Carbide 45.0° Insert Boring Bar 0.250

Part Number: WID2831727 ISO: CCPI25060R ANSI:CCPI25060R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076107
Vendor: Sussex Tool and Supply
$345.54
WIDIA 2831727 45.0 ° Boring Bar Dia0.2500 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.2500 6.35MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style GP
Insert Shape/Cutter Pocket Shape 45.0°
Insert Type Positive
Insert Size Ic 05 "1.2"
Hand Right Hand
Inter/Extern Internal
Min Bore 0.3600
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
