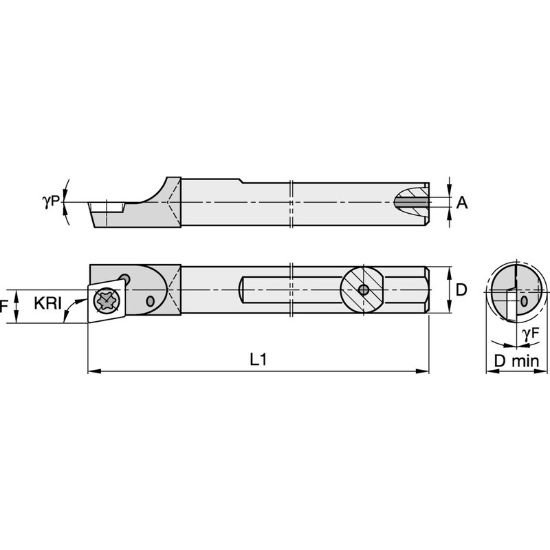

Picture of Widia/Kennametal CCBM61525R Carbide 80.0° Insert Boring Bar 0.236

Widia/Kennametal CCBM61525R Carbide 80.0° Insert Boring Bar 0.236

Part Number: WID2831311 ISO: CCBM61525R ANSI:CCBM61525R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076105
Vendor: Sussex Tool and Supply
$327.64
WIDIA 2831311 80.0 ° Boring Bar Dia0.2362 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.2362 6.00MM
Overall Length 5.9900 152.15MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Insert Size Ic S4
Hand Right Hand
Inter/Extern Internal
Min Bore 0.2790
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
