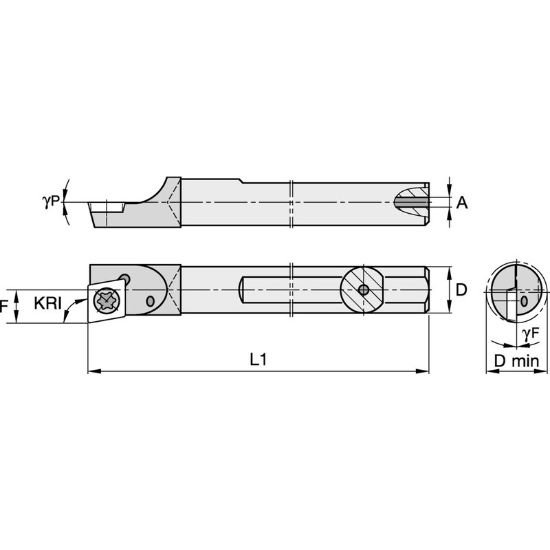

Picture of Widia/Kennametal CCBM61000R Carbide 80.0° Insert Boring Bar 0.236

Widia/Kennametal CCBM61000R Carbide 80.0° Insert Boring Bar 0.236

Part Number: WID3896025 ISO: CCBM61000R ANSI:CCBM61000R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076151
Vendor: Sussex Tool and Supply
$345.36

Description

WIDIA 3896025 80.0 ° Boring Bar Dia0.2362 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 3.9500 100.33MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 1
Insert Size Ic S4
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
Performance & Capacity
Min Bore 0.2790
Materials & Finish
Tool Material Carbide
