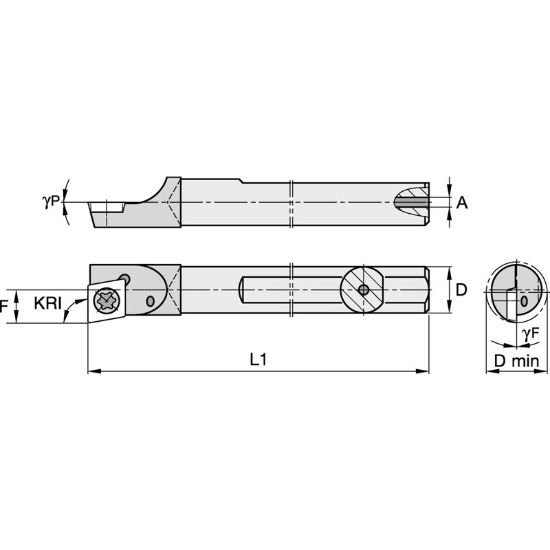

Picture of Widia/Kennametal CCBM41527R Carbide 80.0° Insert Boring Bar 0.157

Widia/Kennametal CCBM41527R Carbide 80.0° Insert Boring Bar 0.157

Part Number: WID2831324 ISO: CCBM41527R ANSI:CCBM41527R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076106
Vendor: Sussex Tool and Supply
$365.15

Description

WIDIA 2831324 80.0 ° Boring Bar Dia0.1574 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.1575 4.00MM
Flutes/Inserts 1
Insert Size Ic S4
Geometry & Angles
Lead Angle 97°
Lead Angle & Clearance Angle Combined 97° Lead Angle
Performance & Capacity
Min Bore 0.1800
Materials & Finish
Tool Material Carbide
