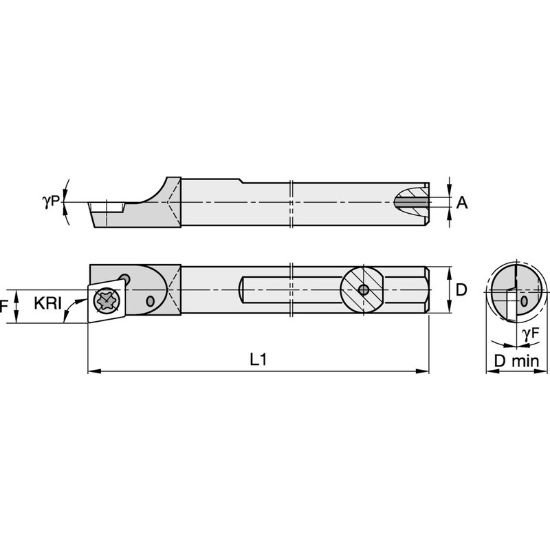

Picture of Widia/Kennametal CCBM41007R Carbide 80.0° Insert Boring Bar 0.156

Widia/Kennametal CCBM41007R Carbide 80.0° Insert Boring Bar 0.156

Part Number: WID2831832 ISO: CCBM41007R ANSI:CCBM41007R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076115
Vendor: Sussex Tool and Supply
$309.88
WIDIA 2831832 80.0 ° Boring Bar Dia0.1560 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.1563 3.97MM
Overall Length 3.9500 100.33MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1562 3.96MM - 5/32
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Insert Size Ic S4
Hand Right Hand
Inter/Extern Internal
Min Bore 0.1800
Lead Angle 97°
Lead Angle & Clearance Angle Combined 97° Lead Angle
