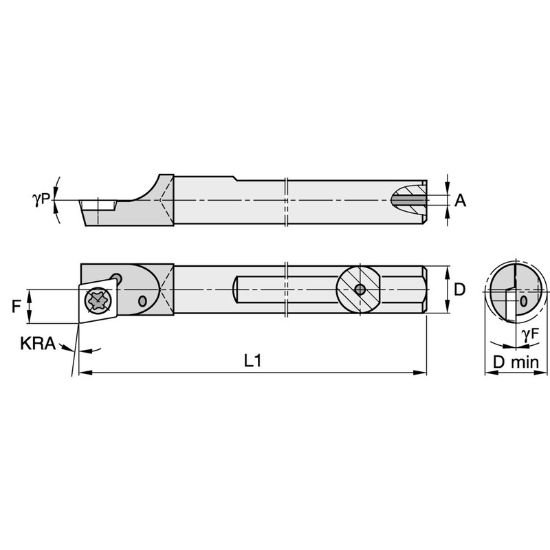

Picture of Widia/Kennametal CCBI31265R Carbide 80.0° Insert Boring Bar 0.312

Widia/Kennametal CCBI31265R Carbide 80.0° Insert Boring Bar 0.312

Part Number: WID2832270 ISO: CCBI31265R ANSI:CCBI31265R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076144
Vendor: Sussex Tool and Supply
$327.64
WIDIA 2832270 80.0 ° Boring Bar Dia0.3125 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.3125 7.94MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Insert Size Ic 12
Hand Right Hand
Inter/Extern Internal
Min Bore 0.3560
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
