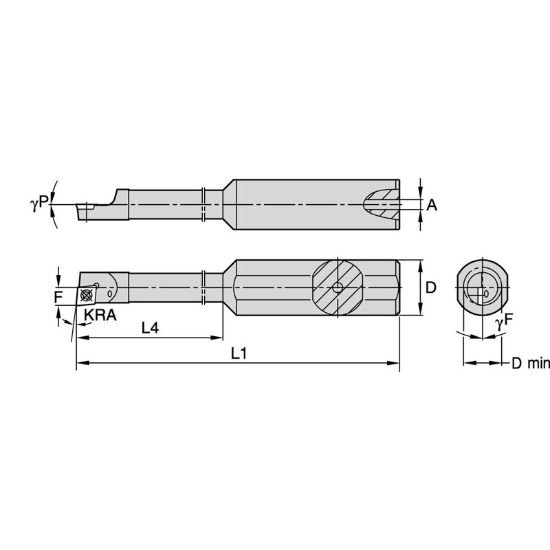

Picture of Widia/Kennametal CCBI2505001250R Carbide 80.0° Insert Boring Bar 0.500

Widia/Kennametal CCBI2505001250R Carbide 80.0° Insert Boring Bar 0.500

Part Number: WID3337598 ISO: CCBI2505001250R ANSI:CCBI2505001250R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076148
Vendor: Sussex Tool and Supply
$461.45

Description

WIDIA 3337598 80.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 12
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
Performance & Capacity
Min Bore 0.2920
Materials & Finish
Tool Material Carbide
