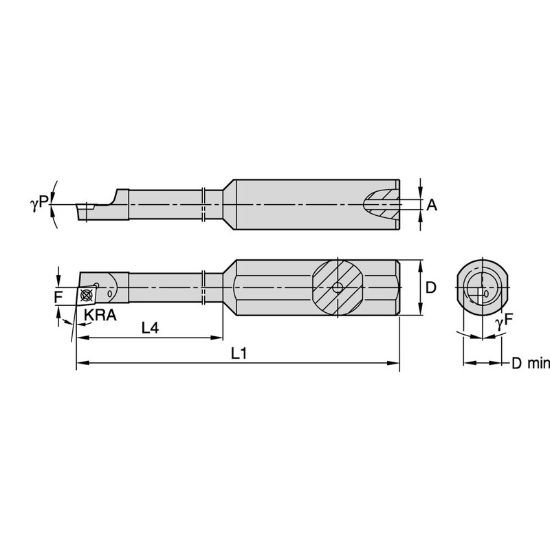

Picture of Widia/Kennametal CCBI20362515R Carbide 80.0° Insert Boring Bar 0.625

Widia/Kennametal CCBI20362515R Carbide 80.0° Insert Boring Bar 0.625

Part Number: WID2832101 ISO: CCBI20362515R ANSI:CCBI20362515R
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076126
Vendor: Sussex Tool and Supply
$459.20

Description

WIDIA 2832101 80.0 ° Boring Bar Dia0.6250 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Insert Size Ic S4
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.2340
Materials & Finish
Tool Material Carbide
