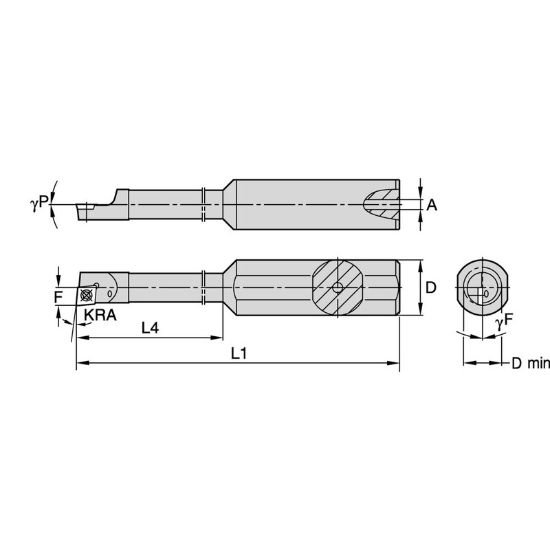

Picture of Widia/Kennametal CCBI20350015R Carbide 80.0° Insert Boring Bar 0.500

Widia/Kennametal CCBI20350015R Carbide 80.0° Insert Boring Bar 0.500

Part Number: WID2832141 ISO: CCBI20350015R ANSI:CCBI20350015R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076128
Vendor: Sussex Tool and Supply
$412.03
WIDIA 2832141 80.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Carbide
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.5000 63.50MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Insert Size Ic S4
Hand Right Hand
Inter/Extern Internal
Min Bore 0.2340
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
